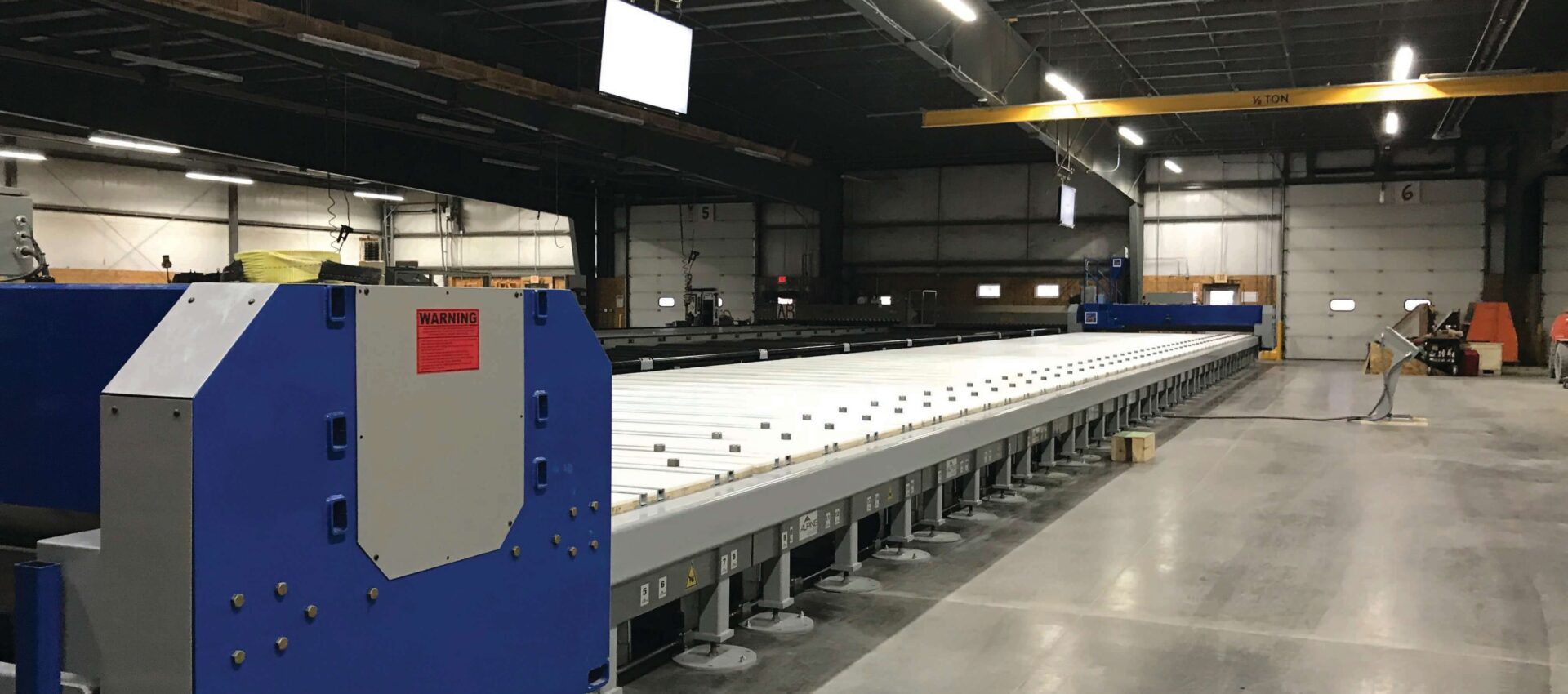

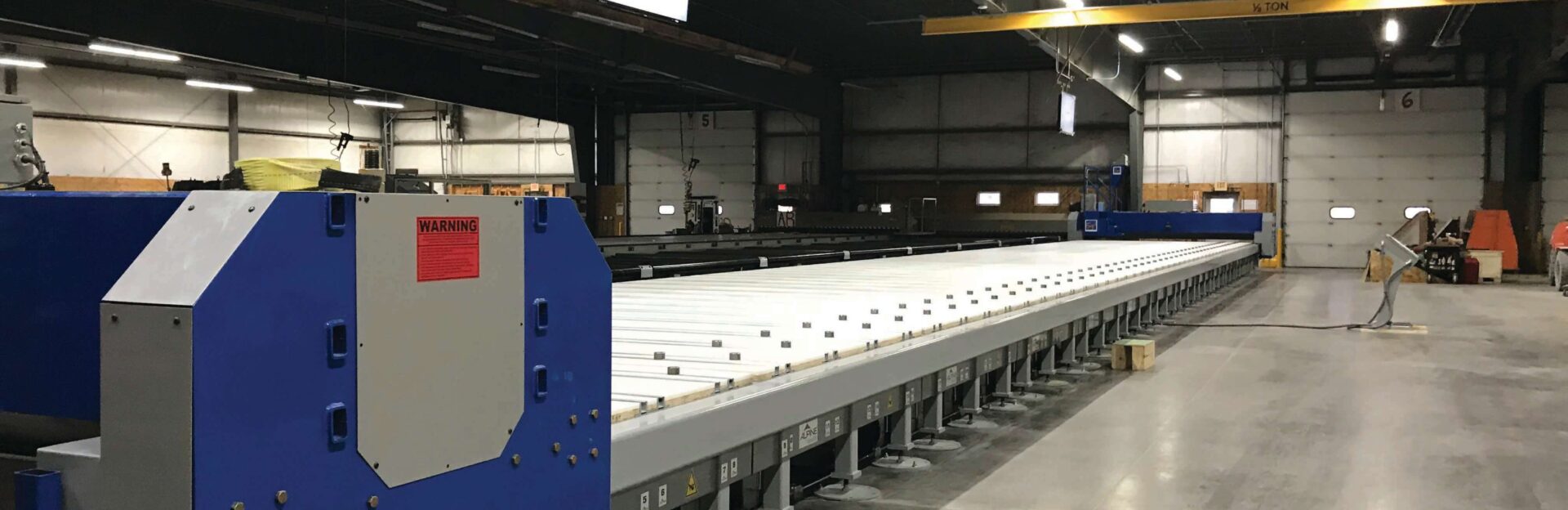

SpeedSet Table Automation
With the latest software and productivity enhancing features, the SpeedSet table retrofit system upgrades the Alpine® plastic tables to a modern automated system.
Boost Efficiency & Accuracy
Automated jigging system improves truss assembly efficiency through rapid computer-controlled setup & state of the art software features
Innovative Software
Quick to learn and simple to use software. Enriched graphics are easy to view in plan conditions and adjustments are simple.
SmartView System
Allows builders to view the truss on screen, providing the builder with plate information & location, lumber size & truss dimensions.
Features
Dual puck unit with four spacing options
Computer station with Control and SmartView software
New plastic table-tops
Plastic wear piece reduces puck wear
Reliable chain driven system
Self-cleaning channels
Can add bridges to the Retrofit to make the system a solid top table system if required
New plastic top provides the ability to add blocking
Specifications
| Retrofit system | ||
|---|---|---|
| Axis Travel Length – Standard | 13-00-04’ (every other puck is offset) | |
| Puck Spacing | 44” OC, 29.33” OC, or ~17” OC | |
| Puck Speed | <60 sec for full length move | |
| Input Voltage | 208-240VAC 3Ø 60HZ (specified by user) | |
| Input Current | Varies per system | |
| Air Requirement | Utilizes existing lift out air supply | |
| Operating Temperature | 32°F to 104°F | |
| New SpeedSet Gantry Table System | ||
| Axis Travel Length – Standard | 13-00-04’ (every other puck is offset) | |
| Puck Spacing | 24” OC | |
| Puck Speed | <60 sec for full length move | |
| Input Voltage | 208-240VAC 3Ø 60HZ (specified by user) | |
| Input Current | Varies per system | |
| Air Requirement | Utilizes existing lift out air supply | |
| Operating Temperature | 32°F to 104°F | |
| Operating temperature | 32°F to 104°F | |
|---|---|---|
| Tables System | ||
| Mechanical |
Steel Frames with plastic table tops Table dimensions: 8′ x 14′ standard, 8′ x 12′ and 8′ x 16′ available Side or end eject SpeedSet Automation – Chain drive system Customer specified puck spacing, 24″ standard | |
| Electical | Input voltage: 208-240V AC, 3Ø, 60HZ | |
| Gantry System | ||
| Mechanical |
High torque speed: 120 FPM High travel speed: 160 FPM Weight: 8500 lbs. Heavy duty Steel Roll 24″ dia., 7/8″ wall thickness | |
| Electrical |
Horsepower: 20 HP Voltage: 460 V 60 HZ | |
| Safety |
Safety scanner emergency stop E-stop with interlock | |
| SpeedSet Retrofit | ||
|---|---|---|
| Labeling: | Trilingual Interface (English, Spanish and French) | |
| Safety Compliance: | MET listed panels | |
| Emergency Stop: | Pushbuttons | |
| SpeedSet New | ||
| Labeling: | Trilingual Interface (English, Spanish and French) | |
| Safety Compliance: | Puck System – MET Gantry | |
| Scanner: | Safety scanner on gantry E-stops system | |
| Emergency Stop: | Pushbuttons | |
