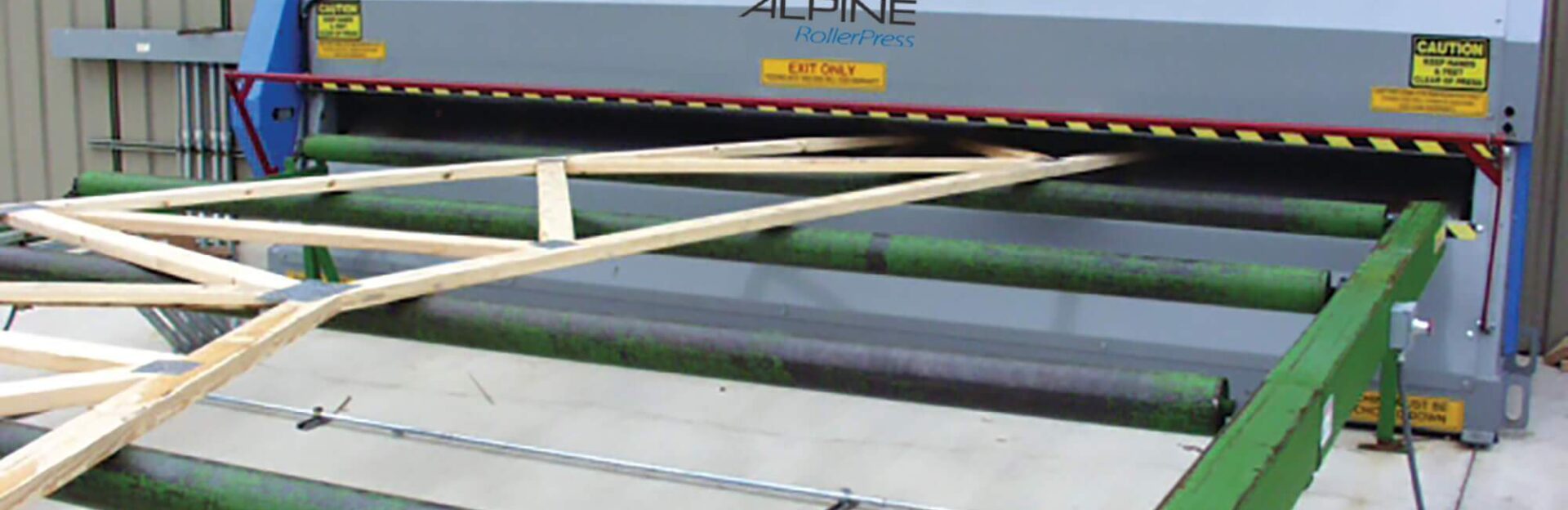

Alpine® RollerPress
With today’s production environment, finish rollers operate non-stop. That’s why you can count on the strength, dependability and reliability of the Alpine RollerPress. Our quality engineering and designs, along with strong components, ensure this finish roller gets the job done right, every time.
Standard Footprint: 17’-6” x 6’ x 6’-10”
*as shown
Dependable
Strong, robust features completely embed plates of all sizes in a single pass, ensuring quality trusses.
Profitable
Heavy-duty design and ease of maintenance reduces downtime, increasing profitability.
Safety
Combination of safety bars and smart electrical technology increases employee safety, by reversing the direction of the roll to clear the hazard.
Features
Oversized bearings engineered to carry the load
Extra-heavy double-100 chain and rugged tensioner for non-slip synchronization
Continuous duty 15-hp motor and gearbox engineered for years of trouble-free performance
Four-inch diameter steel shaft
Each roll has a 24-inch diameter body
Easy access to grease fittings
1-inch thick roll wall and 9 half-inch baffles
Sealed, self-aligned roller bearings
Available in either 240V or 480V power
Available in either left- or right-hand controls
Optional kit to mount safety bar on the building
Our equipment is backed by a highly trained support team ready to assist you with any specific equipment needs. Please call (800) 521-9790 or email our experts at machinerysupport@alpineitw.com for onsite service or technical phone support.
Specifications
| Capacity (roller length) | 15 ft. 6 in. |
|---|---|
| Overall Length | 17 ft. 6-9/16 in. |
| Overall Width | 6 ft. |
| Overall Height | 6 ft. 9-1/2 in. |
| Floor Height (to top of bottom roll) | 2 ft. 6-1/4 in. |
| Labeling: | Trilingual Interface (English, Spanish and French) |
|---|---|
| Safety Compliance: | ETL listed panels |
| Automatic Reversing: | When safety bar is pressed |
| Emergency Stop: | Pushbuttons, Safety Bar |
